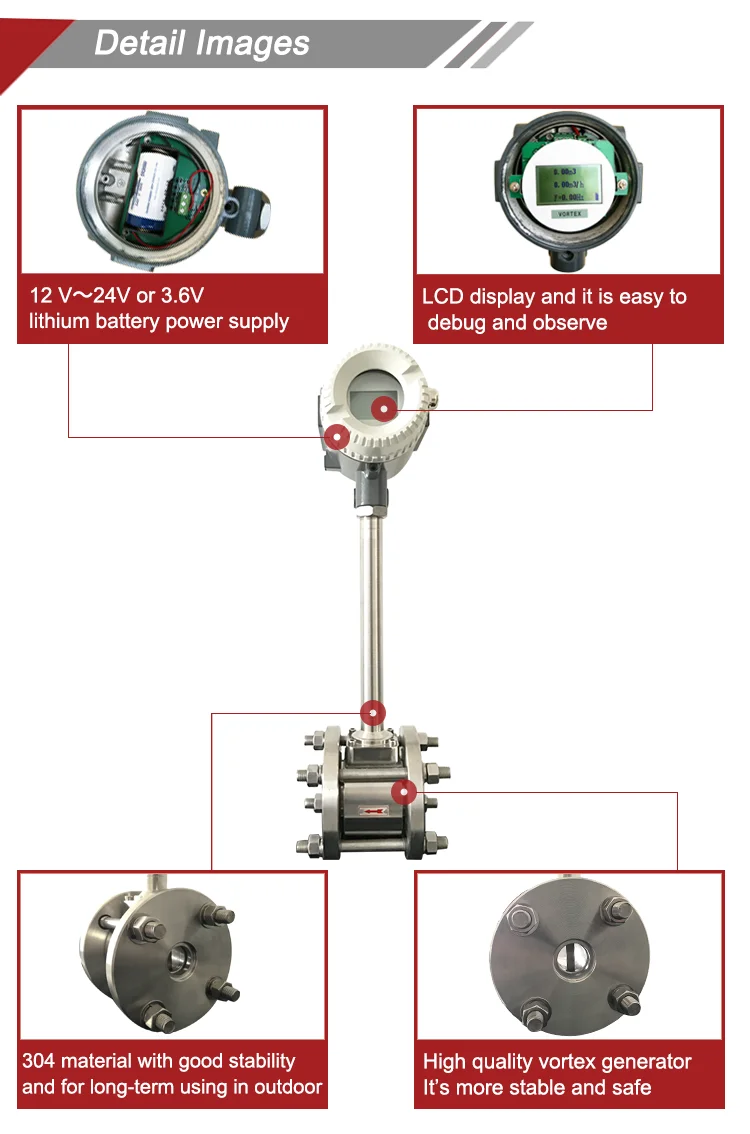

High Quality Gas Vortex Flow Meter Features:
1. Simple structure, no moving parts wear;
2. High accuracy and good reliability, don’t need on-site debugging;
3. Can be long-distance transmission of flow signals, and computer networking, centralized management;
4. Unique design of the amplification board, gas or liquid can be used.
|
Measured Medium
|
Liquid, Gas, Steam
|
|
|
Medium Temp. |
-40~+200℃;-40~+280℃;40~+350℃
|
|
|
Nominal Pressure |
1.6MPa;2.5MPa;4.0MPa;64MPa(Other pressure can be custom)
|
|
|
Accuracy |
±1.0%,±1.5%
|
|
|
Measuring range ratio |
1:8-1:30(Standard air condition as reference), 1:8-1:40(Normal Temperature as reference)
|
|
|
Flow range |
Liquid:0.4-7.0m/s; Gas:4.0-60.0m/s; Steam:5.0-70.0m/s
|
|
|
Specifications |
DN15~DN600 |
|
|
Material |
1Cr18Ni9Ti
|
|
|
Reynolds number |
Normal 2*104~7*106
|
|
|
Resistance coefficient |
Cd≤2.6
|
|
|
Vibration acceleration allowed
|
LUGB≤0.2g
|
|
|
Ex-proof class |
IP65 ExiaIICT6 Ga |
|
|
Ambient condition |
Ambient Temp. |
-40℃-65℃(Non Display on site); -20℃-55℃(Display on site |
|
Relative humidity |
≤5%~93% |
|
|
Pressure |
86-106kPa |
|
|
Power Supply |
12-24V/DC or 3.6V battery powered
|
|
|
Signal Output
|
Pulse frequency signal2-3000Hz,Low level≤1V,high level≥6V
|
|
|
Two-wire system 4-20 signal(isolated output),Load≤500 |
||
“With us your money in safe your business in safe ”full refund in case of bad quality or delay delivery time , we also accept payment by paypal.
We have a professional technical team and sales team:
Certifications of flow meter rs485
High Quality Gas Vortex Flow Meter used in the industry and installed on site:
We have a lot of foreign customers and cooperation, welcome to our company to visit:
